AC146-1D Small Side Exit Sensor with built-in integral stud, 100mV/g, +/- 10% sensitivity.
- Sensitivity: 100 mV/g
- Frequency Response (±3dB): 36-900,000 CPM
- Dynamic Range: ± 80 g, peak
- Power Requirements Voltage Source: 18-30 VDC
- Temperature Range: -58 to 250°F
(-50 to 121°C) - Case Material: 316L Stainless Steel
- Connector: 2 Pin MIL-C-5015
- Max Temp: 250°F
(121°C)
Cerrar
AC220-1D High Frequency mini-MIL Accelerometer, Top Exit Cable, 10 mV/g
- Sensitivity: 10 mV/g
- Frequency Response (±3dB): 60-1,500,000 CPM
- Dynamic Range: ± 500 g, peak
- Power Requirements Voltage Source: 18-30 VDC
- Temperature Range: -58 to 250°F
(-50 to 121°C) - Case Material: 316L Stainless Steel
- Connector: 2 Pin mini-MIL
- Max Temp: 250°F (121°C)
Cerrar
TA312 – Dual Output, Temperature/Acceleration, Top Exit M12 Connector, Low Power, 25 mV/g, 10 mV/°C
- Sensitivity: 25 mV/g
- Frequency Response (±3dB): 72-900,000 CPM
- Dynamic Range: ± 50 g, peak
- Power Requirements Voltage Source: 3-5 VDC (10%)
- Temperature Range: -58 to 250°F (-50 to 121°C)
- Case Material: 316L Stainless Steel
- Connector: 4 Pin M12 Connector
- Max Temp: 250°F (121°C)
Cerrar
AC934 – Class I, Division 2 / Zone 2 Accelerometer, For Use In “Non-Arcing, Non-Sparking” Environments, Side Exit Connector, 50 mV/g Low Capacitance
- Sensitivity: 50 mV/g
- Frequency Response (±3dB): 60-600,000 CPM
- Dynamic Range: ± 100 g, peak
- Power Requirements Voltage Source: 18-28 VDC
- Temperature Range: -65 to 257°F
- Case Material: 316L Stainless Steel
- Connector: 2 Pin MIL-C-5015
- Max Temp: 125°C
Cerrar

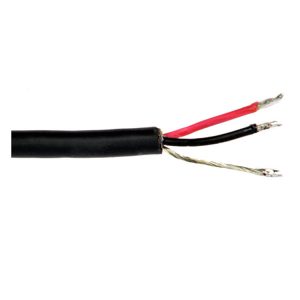

CB110 J2A Series – Standard Cables – For Permanent Monitoring Ended in Blunt Cut
- Max Temp: 250°F (121°C)
- Cable Diameter: .175 in (4.45 mm)
- Cable Jacket: Polyurethane
Cerrar
CB193 – Twisted, shielded pair, RAL Blue polyurethane jacketed cable, .175″, 250 deg F
- Max Temp: 250º F (121º C)
- Cable Diameter: .250 in (6 mm)
- Cable Jacket: Blue Polyurethane
Cerrar
A3S – MIL-Style, 3 socket connector, PPS Material, No Exposed Metal, 392° F
- Application: Sulphuric Acid
- Max Temp: 392° F (200° C)
