Cajas de terminación de cables y cajas MAXX
Cerrar

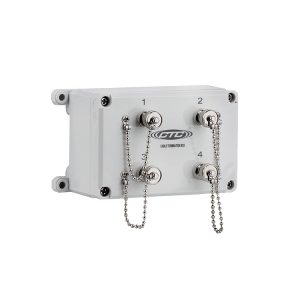

CT101 – 1-4 Channels – Cable Termination Boxes
- Case Material: Polycarbonate
- Inputs: Terminal Block 3 Connections per Channel (+, -, GND)
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid
- Dimensions: 4.72 x 2.72 x 2.52 in
(120 x 69 x 64 mm)
Cerrar

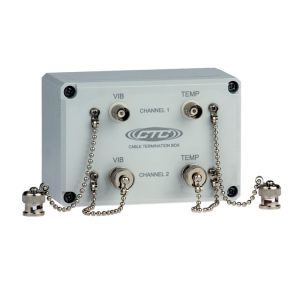

CT142 – 1-2 Channels – Cable Termination Boxes, Dual Output
- Case Material: Polycarbonate
- Inputs: Terminal Block 4 Connections per Channel (A, B, C, GND)
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid
- Dimensions: 4.72 x 2.72 x 2.52 in
(120 x 69 x 64 mm)
Cerrar

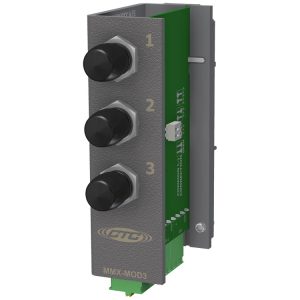

MMX-MOD3 – 3 Channel Module – MAXX Box Module, 3 BNC
- Case Material: PVC
- Inputs: Terminal Block
- Rating: N/A
- Resistance: N/A
- Dimensions: 3.50 x 3.78 x 1.38 in
(89 x 96 x 35 mm)
Cerrar

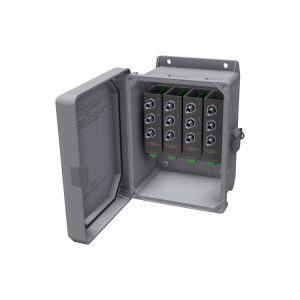

MMX1000 – 3-12 Channels – Modular MAXX Box
- Case Material: Fiberglass
- Inputs: Terminal Block 3 Inputs per Channel (±Shield)
- Rating: NEMA 4X (IP66)
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 7.25 x 9.25 x 4.88 in
(184 x 235x 124 mm)
Cerrar

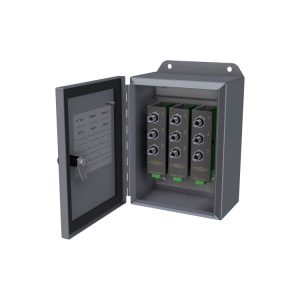

MMX2000 – 3-9 Channels – Modular MAXX Box
- Case Material: Stainless Steel
- Inputs: Terminal Block 3 Inputs per Channel (±Shield)
- Rating: NEMA 4X (IP66)
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 6.19 x 8.00 x 4.16 in
(157 x 203 x 106 mm)
Cerrar

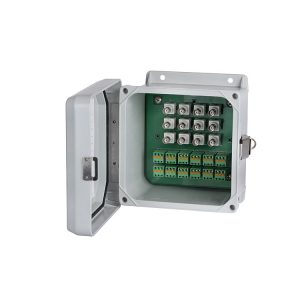

MX102 – 1-12 Channels – Fiberglass MAXX Boxes
- Case Material: Fiberglass
- Inputs: Terminal Block 3 Inputs per Channel (+ – Shield)
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 7.72 x 7.72 x 4.61 in
(196 x 196 x 117 mm)
Cerrar

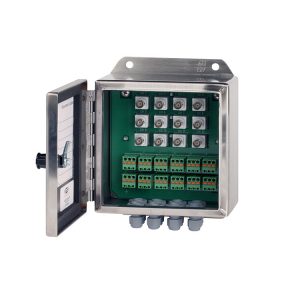

MX202 – 1-12 Channels – Stainless Steel MAXX Boxes
- Case Material: Stainless Steel
- Inputs: Terminal Block 3 Inputs per Channel (+ – Shield)
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 7.72 x 7.72 x 6.81 in
(196 x 196 x 173 mm)
Cerrar

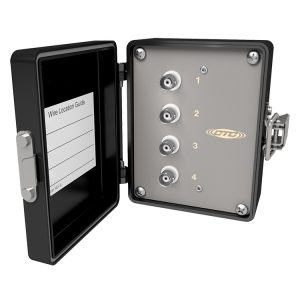

MX502 – 1-4 Channels – Mini-MAXX Enclosure 1-4 Channels
- Case Material: Aluminum
- Inputs: Conduit or Cord Grips
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 4.535 x 3.54 x 2.20 in
(115 x 89.9 x 56.6 mm)
Cerrar

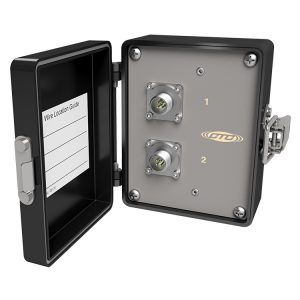

MX504 – 1-2 Channels – Mini-Maxx Enclosure, 1-2 Channels, J4 Series Connectors
- Case Material: Aluminum
- Inputs: Conduit or Cord Grips
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 4.535 x 3.54 x 2.20 in
(115 x 89.9 x 56.6 mm)
Cerrar

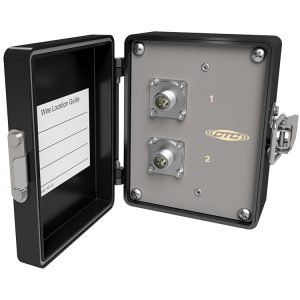

MX505 – 1-2 Channels – Triaxial Mini-MAXX Enclosure, 1-2 Channels, M12 Style Connectors
- Case Material: Aluminum
- Inputs: Conduit or Cord Grips
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 4.535 x 3.54 x 2.20 in
(115 x 89.9 x 56.6 mm)
Cerrar

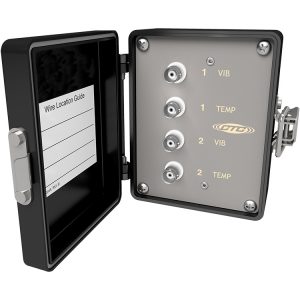

MX542 – 1-2 Channels – Mini-MAXX Enclosure, 1-2 Channels, Dual Output
- Case Material: Aluminum
- Inputs: Terminal Block 4 Inputs per Channel (A, B, C, GND)
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 4.535 x 3.54 x 2.20 in
(115 x 89.9 x 56.6 mm)
Cerrar

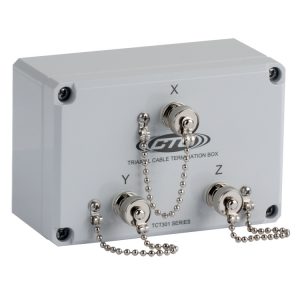

TCT301 – 1 Channel – Triaxial Sensor Termination Boxes
- Case Material: Polycarbonate
- Inputs: Terminal Block 5 Connections per Channel (X, Y, Z, Common, GND)
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid
- Dimensions: 4.72 x 2.72 x 2.52 in
(120 x 69 x 64 mm)
