TR104-M12A – RTD Sensor
TR104-M12A – RTD Sensor, 100 mV/g, with 4 pin M12 side connector
- Sensitivity: 100 mV/g
- Frequency Response (±3dB): 30-900,000 CPM
- Dynamic Range: ± 50g, peak
- Power Requirements Voltage Source: 18-30 VDC
- Temperature Range: -40 to 250°F
- Case Material: 316L Stainless Steel
- Connector: 4 Pin M12
- Max Temp: 250°F (121°C)
Cerrar
Transmisor inalámbrico para aceleración dinámica
Transmisor inalámbrico para aceleración dinámica
Compatible con los siguientes Acelerómetro de baja potencia
AC312-1A – AC314-1A
Cerrar

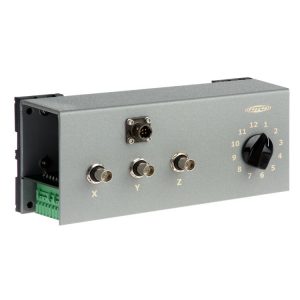

TSB-MOD12 – Triaxial switch module with 12 triaxial inputs, three BNCs
- Case Material: PVC
- Inputs: Terminal Block
- Rating: N/A
- Resistance: N/A
- Dimensions: 3.54 x 4.06 x 7.99 in
(90 x 103 x 203 mm)
Cerrar
Cerrar
TSB-MOD4 – Triaxial switch module with 4 triaxial inputs, three BNCs
- Case Material: PVC
- Inputs: Terminal Block
- Rating: N/A
- Resistance: N/A
- Dimensions: 4.02 x 3.94 x 2.76 in
(102 x 100 x 70 mm)
Cerrar
Cerrar

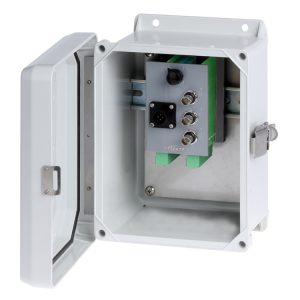

TSB1000 – Fiberglass Switch Box, Triaxial Output, Modular, 4 Triaxial Sensor
- Case Material: Fiberglass
- Inputs: Terminal Block, 5 Terminations per Triaxial Sensor (X +, Y +, Z +, COM, GND)
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 7.72 x 9.61 x 4.61 in
(196 x 244 x 117 mm)
Cerrar

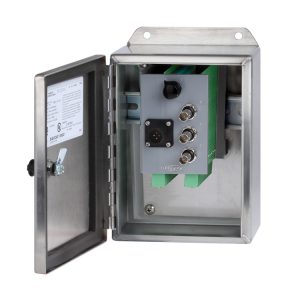

TSB2000 – Stainless Steel Switch Box, Triaxial Output, Modular, 4 Sensor
- Case Material: Stainless Steel
- Inputs: Terminal Block, 5 Terminations per Triaxial Sensor (X +, Y +, Z +, COM, GND)
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 6.69 x 8.31 x 4.21 in
(170 x 211 x 107 mm)
Cerrar

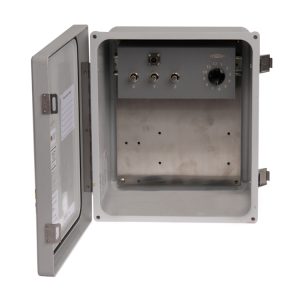

TSB3000 – Fiberglass Switch Box, Triaxial Output, Modular, 12 Triaxial Sensor
- Case Material: Fiberglass
- Inputs: Terminal Block, 5 Terminations per Triaxial Sensor (X +, Y +, Z +, COM, GND)
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 11.65 x 13.74 x 6.93 in
(296 x 349 x 176 mm)
Cerrar

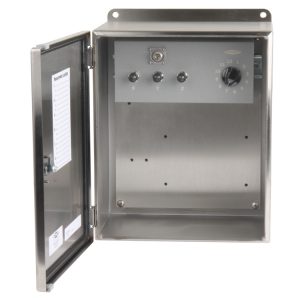

TSB4000 – Stainless Steel Switch Box, Triaxial Output, Modular, 12 Triaxial Sensor
- Case Material: Stainless Steel
- Inputs: Terminal Block, 5 Terminations per Triaxial Sensor (X +, Y +, Z +, COM, GND)
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 10.00 x 13.50 x 7.24 in
(254 x 343 x 184 mm)
Cerrar
TSB6000 – 12 Channel – Stainless Steel Sloped Top Enclosure, Triaxial Output, Modular, 4 Sensor (12 Channel)
- Case Material: Stainless Steel
- Inputs: Terminal Block, 5 Terminations per Triaxial Sensor (X +, Y +, Z +, COM, GND)
- Rating: NEMA 4X
- Resistance: Resistant to Hose Directed Fluid and Corrosion
- Dimensions: 6.24 x 13.75 x 6.18 in
(158.5 x 349.3 x 156.9 mm)
Cerrar
UEB330 – Ultrasound Sensor
UEB330 – Ultrasound Sensor, 100mV/g, Top Exit, 2 Pin mini-MIL Connector, 1/4-28 Mounting
[caption id="attachment_3047" align="alignnone" width="250"]
Sensor ultrasonido[/caption]
- Sensitivity: 100 mV/g
- Frequency Response (±3dB): 30-1,500,000 CPM
- Dynamic Range: ± 50g, peak
- Power Requirements Voltage Source: 18-30 VDC
- Temperature Range: -58 to 250°F
- Case Material: 316L Stainless Steel
- Connector: 2 Pin mini-MIL,
J Series Connector - Max Temp: 250°F (121°C)
